Features

  • Provides an abstraction of hardware devices of network switch platforms in a Linux OS environment
  • Uses standard open source software including an ONIE installer, and an unmodified Linux kernel based on Debian Jessie distribution
  • Provides a robust and flexible programmatic API — control plan services (CPS)
  • Accesses OpenSwitch networking features using either the Linux standard API or the CPS
  • Provides a rich set of networking features including full access to the NPU ACL and QoS functionality using the CPS

OPX uses an unmodified Linux kernel and standard distribution to take advantage of rich ecosystem. It also provide flexibility in customizing your base system according to your network needs.

Get Started with OpenSwitch OPXGet Started with OpenSwitch OPX

Main Supported Features

System
  • Linux Debian Jessie 8.10, Linux stack integration, 1/10/25/40/100G platforms
L2 Features
  • Bridging, LAGs, LLDP, STP, PVST, VLANs, CoS
L3 Features
  • IPv4/IPv6 support, BGPv4+, OSPFv2/3, ECMP, VRFs, VRRP, ICMP, ARP, DNS, NTPv4, DHCP, IGMPv2
ACL
  • Match on IPv4/IPv6, MAC, DSCP/802.1p, custom fields
Security & Instrumentation
  • ACL: 5-tuples, L2/L3, UDF; Monitor: (R)SPAN, sFlow
QoS
  • DiffServ, PFC, CoPP, Policers, Shapers, Scheduling
Network Management
  • RADIUS, TACACS+, SSHv2, SCP, SNMP
Automation
  • Control plane services APIs, Linux utilities and tools, Ansible, Chef, Puppet, Salt, Python, C/C++, YANG
Supported Platforms
  • Dell EMC S3048-ON, S4048-ON/S4048T, S4128F-ON/S4128T-ON, S4148F-ON/S4148FE-ON, S4148T-ON, S4248FB-ON/S4248FBL-ON, S5148F-ON, S6010-ON, Z9100-ON, and Edgecore 7512-32X
Application Programming

Provides an object-centric API for application development to implement custom applications using a well-defined object model, and set of programmatic APIs. The object model is defined using YANG modeling, and the APIs support Python and C/C++ programming languages. See Application programming for more information.

Hardware Virtualization

OPX Base software supports hardware virtualization (or simulation). Software simulation of basic hardware functionality is also provided (“white board”), and the higher layer software functionality can be developed and tested on generic PC/server hardware. See Hardware virtualization for more information.

Repositiories

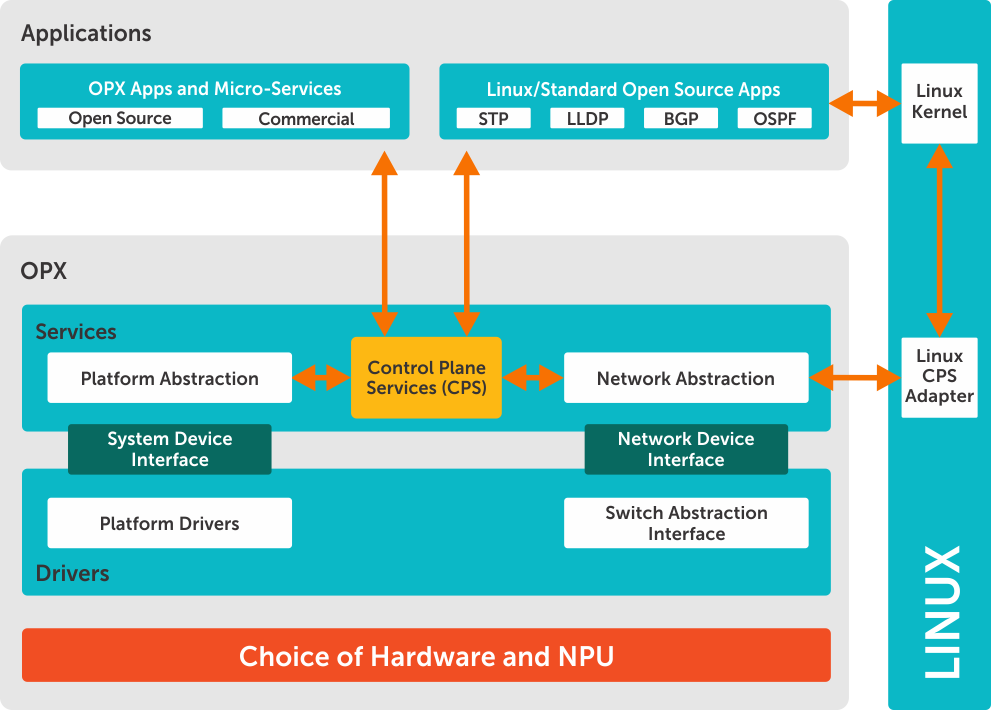

The repository structure is organized around the main architecture components:

  • NAS and SAI
  • PAS and SDI
  • Infrastructure
Limitations

Other platforms will be supported in future releases. OpenSwitch software uses an earlier version of the SAI specification. The OpenSwitch implementation will be compliant to the future SAI API v1.0 when available.
